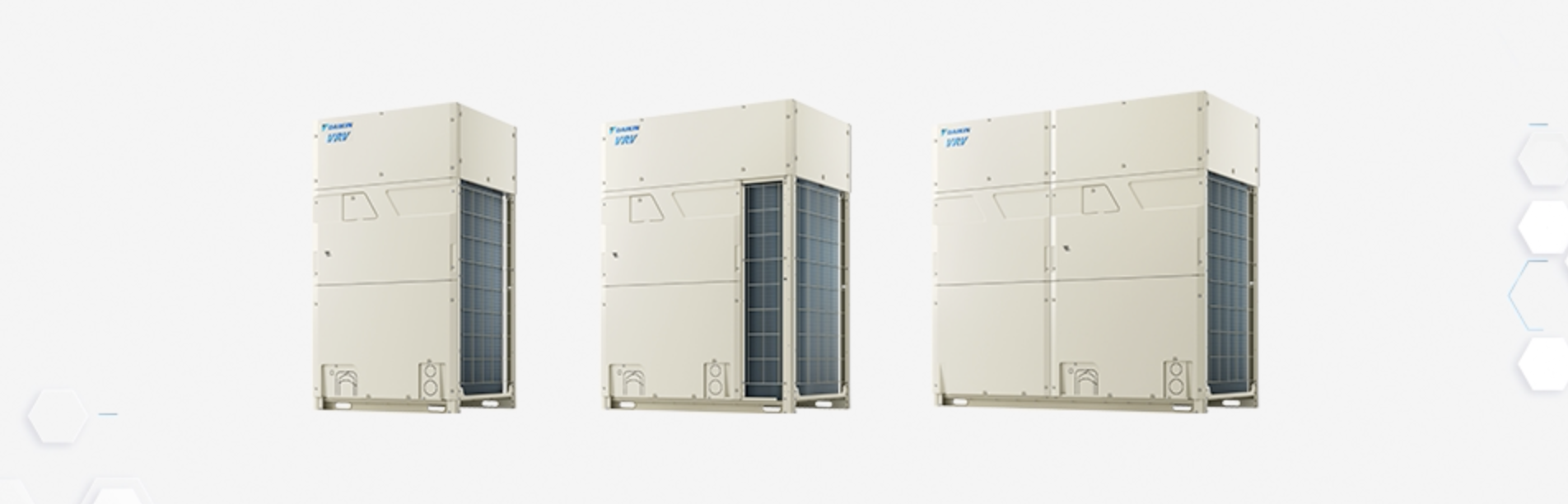

The new large single unit casing reduces installation cost and space. The reinforced frame design improves resistance to earthquakes and wind while protecting against falling damage.

• • Large-capacity single module
• • Reduces installation cost and space
• • New reinforced frame design (earthquake & wind resistance)
• • Protects against falling damage

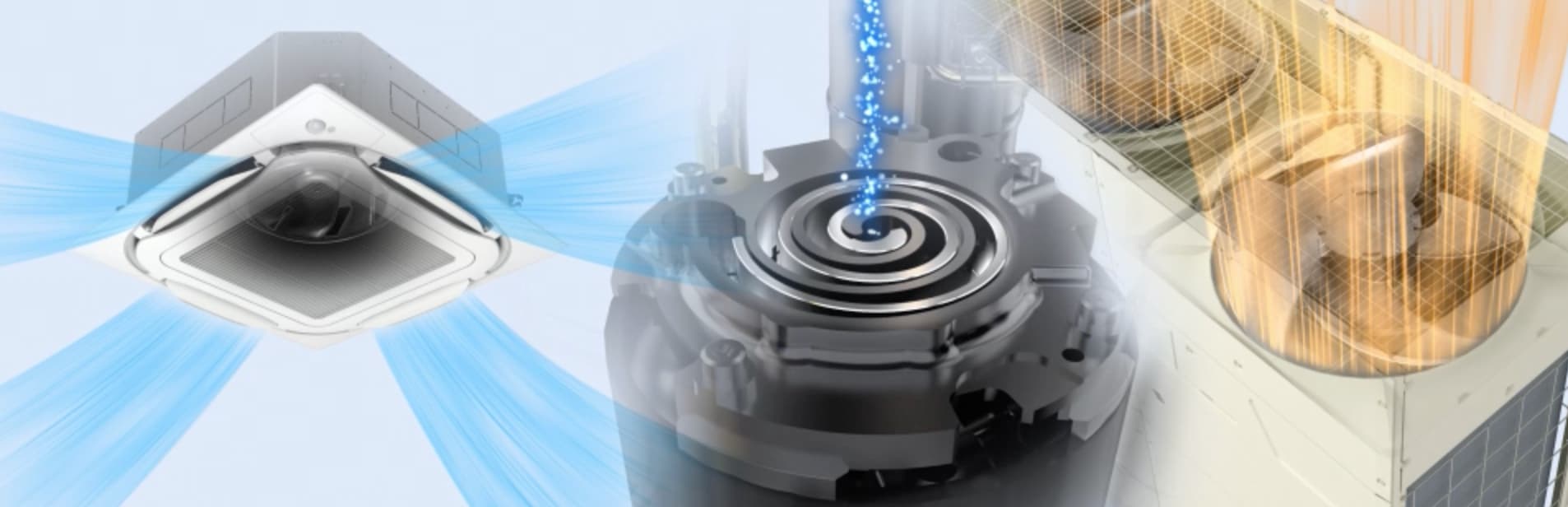

Further energy savings have been achieved through the evolution of software and hardware technologies.

• • VRT Smart II Control: optimal supply meets required indoor-unit capacity
• • Optimal control of outdoor airflow rate improves energy savings
• • High Efficiency Compressor: higher seasonal efficiency & compact design

Further energy savings have been achieved through the evolution of software and hardware technologies.

• • IP55 sealed component box protects against debris, sand, water, bugs/lizards
• • Hinged internal mounting plate enables easy PCB maintenance
• • Validated by 4-day gecko ingress test (20 geckos) – no ingress
• • Stable operation in high outdoor temperature via 3 refrigerant cooling circuits
• • Outdoor operation temperature range extended 49 → 52°C

Long refrigerant piping enhances design flexibility, enabling support for large buildings.

• • Height difference extension: Max. 110 m (improved from 90 m)
• • Equivalent length extension: Max. 190 m
• • REFNET header downstream branching supported
• • Refer to Installation Manual for piping restrictions/details

Maintains a quiet environment with nighttime quiet operation and provides continuity with backup operation.

• • Nighttime quiet operation automatically suppresses sound by reducing capacity (3 modes)
• • Selectable duration (e.g., 6/8/10 hours; initial setting 8 hours)
• • Backup operation: remaining outdoor units continue emergency operation until repair

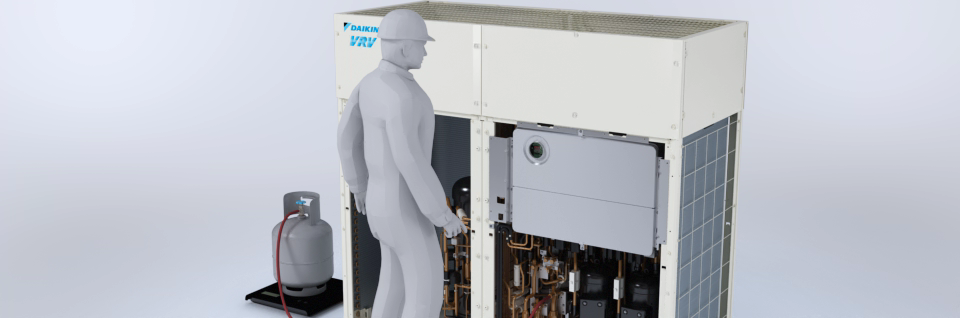

New structure improves installability and on-site workability.

• • Automatic refrigerant charge function
• • Electrical component service window for quick access to LED & setting buttons
• • Process visualization (test run only): progress rate 0–99% as work guideline
• • Improved piping & wiring workability with separated holes (left/right)
